ML-PIPES-SUPERVISION

Detect and Annotate

Detect objects and annotate boxes, labels, or masks with RF-DETR, YOLO, or your preferred detection or segmentation model using Supervision and ml-pipes. The examples use RF-DETR through Roboflow Inference.

basic-annotation

Run Detection

First, you'll need to obtain predictions from your object detection or segmentation model.

To run inference, initialize a Roboflow Inference model and pass it the source image. The result is an Inference response object that you will convert to a Detections instance in the next step.

from ml_pipes.core import Pipeline
from ml_pipes.supervision import ImageToArray
from ml_pipes.supervision.inference import RoboflowInference
from ml_pipes.vision import Decode, LoadFile

pipeline = Pipeline(
    [
        LoadFile(),
        Decode(),
        ImageToArray(),
        RoboflowInference(model_id="rfdetr-small"),
    ]
)

results = pipeline("people-walking.jpg")

import cv2
from inference import get_model

model = get_model(model_id="rfdetr-small")
image = cv2.imread("people-walking.jpg")
results = model.infer(image)[0]

Load Predictions into Supervision

Now that we have predictions from a model, we can load them into Supervision.

Supervision's converters turn model predictions into a unified Detections object for filtering and annotation, regardless of the model that produced them.

from ml_pipes.core import Pipeline
from ml_pipes.standard import Select
from ml_pipes.supervision import Detections, ImageToArray
from ml_pipes.supervision.inference import RoboflowInference
from ml_pipes.vision import Decode, LoadFile

pipeline = Pipeline(
    [
        LoadFile(),
        Decode(),
        ImageToArray(),
        RoboflowInference(model_id="rfdetr-small"),
        Select(0),
        Detections.FromInference(),
    ]
)

detections = pipeline("people-walking.jpg")

Use the sv.Detections.from_inference method, which accepts model results from both detection and segmentation models.

import cv2
import supervision as sv
from inference import get_model

model = get_model(model_id="rfdetr-small")
image = cv2.imread("people-walking.jpg")
results = model.infer(image)[0]
detections = sv.Detections.from_inference(results)

The available operators for loading predictions from other frameworks are listed under Detection Boundaries.

Annotate Image with Detections

Use BoxAnnotator and LabelAnnotator to draw bounding boxes and class labels. Annotation needs both the source image and its detections; multiple annotators can add their overlays to the same image.

from ml_pipes.core import Pipeline
from ml_pipes.standard import Recall, Select, Store
from ml_pipes.supervision import BoxAnnotator, Detections, ImageToArray, LabelAnnotator
from ml_pipes.supervision.inference import RoboflowInference
from ml_pipes.vision import Decode, LoadFile

pipeline = Pipeline(
    [
        LoadFile(),
        Decode(),
        ImageToArray(),
        Store("source_image"),
        RoboflowInference(model_id="rfdetr-small"),
        Select(0),
        Detections.FromInference(),
        Recall("source_image", prepend=True),
        BoxAnnotator(),
        LabelAnnotator(),
    ]
)

annotated_image, detections = pipeline("people-walking.jpg")

import cv2
import supervision as sv
from inference import get_model

model = get_model(model_id="rfdetr-small")
image = cv2.imread("people-walking.jpg")
results = model.infer(image)[0]
detections = sv.Detections.from_inference(results)

box_annotator = sv.BoxAnnotator()
label_annotator = sv.LabelAnnotator()

annotated_image = box_annotator.annotate(
    scene=image, detections=detections)
annotated_image = label_annotator.annotate(
    scene=annotated_image, detections=detections)

basic-annotation

Display Custom Labels

By default, sv.LabelAnnotator uses detections.data["class_name"], then class IDs, then detection indices. Custom labels can include confidence scores or other detection data. The examples below add class names and confidence to each detection's label.

from ml_pipes.core import Pipeline
from ml_pipes.standard import Recall, Select, Store
from ml_pipes.supervision import BoxAnnotator, Detections, ImageToArray, LabelAnnotator
from ml_pipes.supervision.inference import RoboflowInference
from ml_pipes.vision import Decode, LoadFile

pipeline = Pipeline(
    [
        LoadFile(),
        Decode(),
        ImageToArray(),
        Store("source_image"),
        RoboflowInference(model_id="rfdetr-small"),
        Select(0),
        Detections.FromInference(),
        Recall("source_image", prepend=True),
        BoxAnnotator(),
        LabelAnnotator(show_class=True, show_confidence=True),
    ]
)

annotated_image, detections = pipeline("people-walking.jpg")

import cv2
import supervision as sv
from inference import get_model

model = get_model(model_id="rfdetr-small")
image = cv2.imread("people-walking.jpg")
results = model.infer(image)[0]
detections = sv.Detections.from_inference(results)

box_annotator = sv.BoxAnnotator()
label_annotator = sv.LabelAnnotator()

labels = [
    f"{class_name} {confidence:.2f}"
    for class_name, confidence
    in zip(detections['class_name'], detections.confidence)
]

annotated_image = box_annotator.annotate(
    scene=image, detections=detections)
annotated_image = label_annotator.annotate(
    scene=annotated_image, detections=detections, labels=labels)

custom-label-annotation

Annotate Image with Segmentations

For segmentation results, use MaskAnnotator instead of BoxAnnotator to draw masks rather than boxes. Combine both annotators if you want boxes and masks on the same image.

import supervision as sv

from ml_pipes.core import Pipeline
from ml_pipes.standard import Recall, Select, Store
from ml_pipes.supervision import Detections, ImageToArray, LabelAnnotator, MaskAnnotator, PlotImage
from ml_pipes.supervision.inference import RoboflowInference
from ml_pipes.vision import Decode, LoadFile

pipeline = Pipeline(
    [
        LoadFile(),
        Decode(),
        ImageToArray(),
        Store("source_image"),
        RoboflowInference(model_id="rfdetr-seg-small"),
        Select(0),
        Detections.FromInference(),
        Recall("source_image", prepend=True),
        MaskAnnotator(),
        LabelAnnotator(text_position=sv.Position.CENTER_OF_MASS),
        PlotImage(at=0),
    ]
)

annotated_image, detections = pipeline("people-walking.jpg")

import cv2
import supervision as sv
from inference import get_model

model = get_model(model_id="rfdetr-seg-small")
image = cv2.imread("people-walking.jpg")
results = model.infer(image)[0]
detections = sv.Detections.from_inference(results)

mask_annotator = sv.MaskAnnotator()
label_annotator = sv.LabelAnnotator(text_position=sv.Position.CENTER_OF_MASS)

annotated_image = mask_annotator.annotate(
    scene=image,
    detections=detections,
)
annotated_image = label_annotator.annotate(
    scene=annotated_image,
    detections=detections,
)
sv.plot_image(annotated_image)

segmentation-annotation

Compact Masks

For segmentation, replace the conversion stage with Detections.FromInference(compact_masks=True). Supervision's sv.CompactMask stores cropped, encoded masks instead of full-image dense arrays; MaskAnnotator and Detections.Stitch() accept these masks.

Compact conversion crops masks to detector bounding boxes, dropping pixels outside them. Keep the default compact_masks=False to preserve those pixels. See the upstream compact-mask guide for formats, conversion, and performance details.

Inspect the Pipeline

Use Pipeline.inspect() to capture the value at every operator boundary without changing the pipeline's final output. The inspection renderer turns that captured run into a shareable HTML report.

from ml_pipes.inspection import PipelineInspector

inspection = pipeline.inspect("vehicles_frame.jpg")
PipelineInspector().save(inspection, "inspection.html")

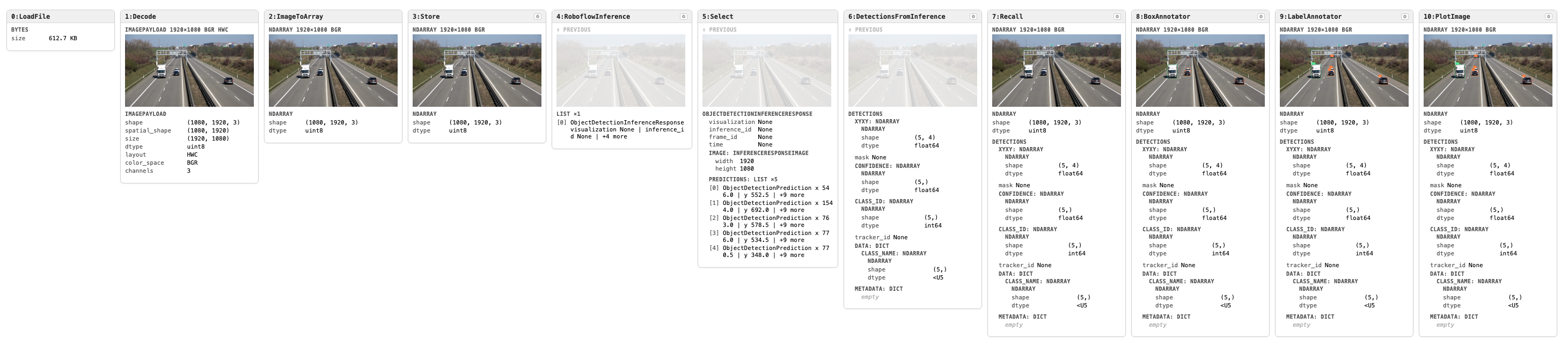

The report below captures the Detect and Annotate pipeline on a frame from the vehicle video used in the line-crossing example.

Detect and Annotate pipeline inspection

Click the image to open the interactive inspection report.
